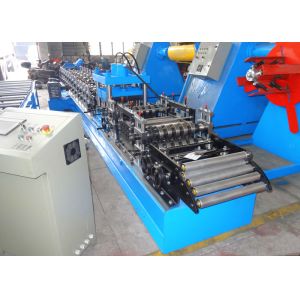

C80-250 C Purlin Roll Forming Machine Line With Automatic PLC Control System

Brief Description

This C shape purlin machine is designed to produce C purlins with the web width from 80-250mm and thickness of 1.5mm to 2.5mm. Users need to adjust the spacers between rollers for roll forming each purlin dimension.

With hydraulically powered post-cutting device of this c purlin production line, users need to change cutting blades for each size. Believe Industry Company have developed a new cutting device with infinitely adjustment, with this new technology, only one cutting blade can meet all the cutting demands.

Machine Features

• With PLC automatic control system
• Electrically driven via 2.0" chain and sprocket
• Levelling device for good flatness of material before punching and roll forming
• Hydraulic punching unit placed before roll forming
• With Turkey straightner for perfect straightness of c purlins

Main Componnets of C80-250 Purlin Machine

Main Technical Parameters

1. Applicable materials: galvanized steel coils, cold rolled steel coils

2. Material thickness: 1.5mm to 2.5mm

3. Roll forming stations: 13 stations

4. Roll forming speed: 10-15m/min

5. Main roll forming power: 15kw
6. Diameter of shafts: 70mm

7. Hydraulic power: 11kw for punching holes and cutting
