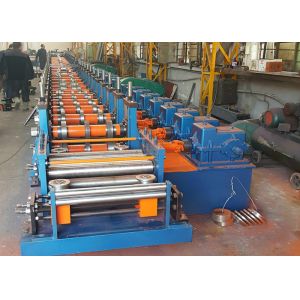

Self Lock Type Beam Roll Forming Machine, Pro-beam Rollforming Equipment

Brief Description

Self-lock type beam is a new designed type for storage system. Former box beams are seamed with two c sections, which need two steps to produce a beam. First step is to roll form c sections, and secondly the seaming machine combines the two sections into a box type beam. Self-lock type beam machine is an fully automatic production line starting from coils unwinding to final products running out.

Self-lock Type Box Beam And Traditional Box Beam

Self-lock type beam is a newly designed beam which can save material and labor cost. Capacity of self-lock type beam will be 88%-90% of traditional seamed box beams with same material thickness.

Whole Line Components And Machine Layout

1. Decoiler

2. Feeding And Guiding Unit

3. Levelling Unit

4. Roll Forming Mill

5. Cutting Unit

6. Collection Table

7. Electric Control System

8. Gear Box Drive System

9. Hydraulic System

1. Line Direction: left to right

2. Working Process: decoiling-->feeding and guiding-->roll forming-->cutting-->final product

Machine Features

• Capable for producing beams with 1.5mm to 2.0mm thick
• With PLC control system, whole line is automatic with easy operation
• Electrically driven via gear box and universal joint
• Good quality of product surface and great straightness
• High precision of cutting length
• All rollers material are GCR15 with heat treatment and chrome plated
• Continuous production with flying cutoff, line speed is approx. 20m/min
